TL;DR: The guitar pickup, a device for converting string vibration into an electrical signal, was invented in 1931 and transformed music within two decades. Leo Fender, after building two of the most iconic electric guitars in history, filed a 1961 patent for a hum-canceling pickup designed specifically for bass guitars that remains foundational to how modern pickups handle noise rejection. Original prints of the patent drawing are available framed or unframed.
In 1961, Leo Fender received a patent for a guitar pickup designed to cancel out electromagnetic interference from sources other than the strings. The patent described a configuration that used opposing magnetic polarity and reversed wiring in paired coils to reject the hum that plagued single-coil designs in the presence of fluorescent lights, amplifiers, and the electrical environments of recording studios and live venues. Fender had already changed popular music twice over with the Telecaster and the Stratocaster. The 1961 patent shows him still working on the physics of the instrument a decade after those designs had made him famous.
The Problem the Pickup Solved
Before the electric guitar, the guitar was a quiet instrument. An acoustic guitar produces sound through the resonance of its wooden body, projecting only as much volume as the natural physics of wood and air allow. In the orchestral and big-band settings of early 20th-century music, the guitar could not compete with brass or woodwind sections. Players could hear themselves clearly enough. The audience in the back of a dance hall could not.
The pickup solved that problem by moving the guitar out of the acoustic domain entirely. Instead of relying on body resonance, a pickup placed beneath the strings converts the mechanical vibration of a metal string into an electrical signal. That signal feeds an amplifier, which converts it back into sound at any volume the player and venue require. The guitar's volume ceiling stopped being determined by wood and started being determined by electricity.
The mechanism is straightforward in principle: a permanent magnet creates a magnetic field around the string, and when the string vibrates, its movement changes the magnetic flux through a coil of wire wound around the magnet. That changing flux induces a small electrical current in the coil, and that current carries the frequency information of the string's vibration. An amplifier takes that current and makes it loud.
George Beauchamp and the First Electric Pickup
George Beauchamp was a steel guitar player with an engineering orientation and a persistent noise problem. Acoustic steel guitars were not loud enough for his purposes, and the instrument's design did not lend itself to the kind of body resonance that could project in a large room. Beauchamp began experimenting with electromagnetic pickups in the late 1920s, working in the garage of a Los Angeles instrument maker named Adolph Rickenbacker.
By 1931, Beauchamp and Rickenbacker had developed a functional electric guitar: a cast aluminum body with a horseshoe-shaped magnet that wrapped around the strings, encircling them in a strong magnetic field to improve the pickup's sensitivity. The instrument was called the Rickenbacker Frying Pan, named for the shape of its round aluminum body and long neck. It was built to be played on the lap, in the Hawaiian steel guitar tradition, rather than held vertically against the body.
The Frying Pan demonstrated that electromagnetic pickups worked. The horseshoe magnet configuration was effective but physically large, and the cast aluminum body was not suited to the upright playing position that most guitarists preferred. The next decade would be spent developing pickups and bodies that worked for conventionally played instruments.
Single-Coil Pickups and the Problem of Hum
The standard pickup design that emerged through the 1930s and 1940s was the single-coil configuration: a row of magnetic pole pieces, one beneath each string, wound with fine wire to create the coil that generates the electrical signal. Single-coil pickups produced a clear, bright tone that worked well for the musical styles of the era: country, jazz, early rhythm and blues. They were also sensitive to electromagnetic interference from the environment.
Fluorescent lighting, transformer hum from power supplies, and the electromagnetic fields generated by nearby amplifiers all induced interference into single-coil pickups. The interference appeared in the audio signal as a steady 60-cycle hum, sometimes barely audible and sometimes loud enough to be a genuine problem. Players learned to position themselves away from the worst interference sources, but the hum was an inherent limitation of the single-coil design.
The Fender Telecaster and the Commercial Electric Guitar
Leo Fender founded the Fender Electric Instrument Manufacturing Company in 1946 in Fullerton, California. His background was in radio and electronics repair rather than traditional instrument building, and his approach to the electric guitar reflected that: he designed it as an electronic product that happened to be a musical instrument, with an emphasis on manufacturing consistency, repairability, and mass production.
The Fender Telecaster, introduced in 1951 as the Broadcaster and renamed after a trademark dispute, was the first mass-produced solid-body electric guitar. Its solid ash body eliminated the acoustic feedback problems that had plagued hollow-body and semi-hollow designs. Its bolt-on neck made replacement and adjustment simple. Its two single-coil pickups offered the bright, twangy tone that became foundational to country music and, later, rock and roll.
The Telecaster was followed in 1954 by the Stratocaster, a more ergonomically contoured body with three single-coil pickups and a synchronized tremolo bridge. The Stratocaster's three-pickup configuration gave players access to tonal combinations the two-pickup Telecaster could not provide, and its body shape became one of the most widely copied forms in instrument manufacturing history.
Gibson's response to Fender's solid-body designs was the Les Paul, introduced in 1952 in collaboration with guitarist Les Paul. Where Fender prioritized manufacturing consistency and repairability, Gibson emphasized the tonal properties of the mahogany body and the warmer character of its pickups. The competition between Fender and Gibson through the 1950s drove rapid development in pickup design, body construction, and tonal range.
The Humbucking Pickup and Noise Rejection
The hum problem that single-coil pickups had always carried was addressed in 1955 by Gibson engineer Seth Lover, who developed the humbucking pickup. A humbucker uses two coils wound in opposite directions with their magnetic polarity reversed relative to each other. When electromagnetic interference induces hum in both coils, the reversed configuration causes the interference signals to cancel each other out. The string signal, which is generated differently, is preserved and amplified.

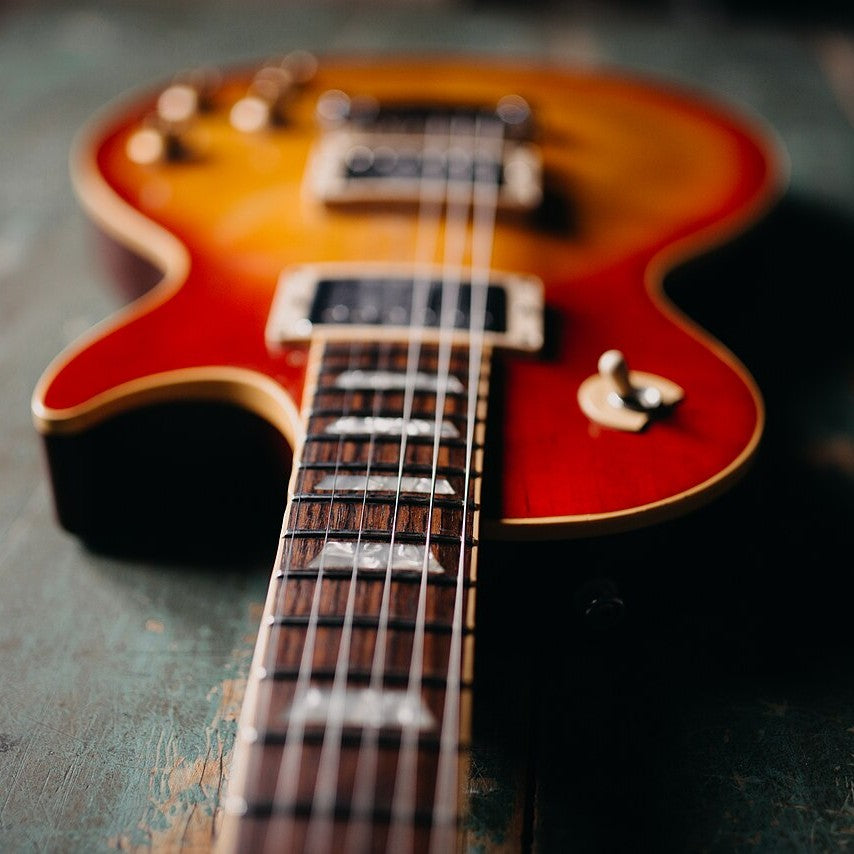

The humbucker produced a warmer, fuller sound than single-coil designs and eliminated the interference problem entirely. Gibson introduced humbuckers on the Les Paul in 1957, and the combination of the Les Paul's mahogany body and the humbucker's tonal character created the thick, sustaining sound that became foundational to blues rock and heavy music in the following decades.
Leo Fender's 1961 Patent: Noise Rejection for Bass
After the commercial success of the Telecaster and Stratocaster, Leo Fender continued developing new pickup designs. His 1961 patent covered a pickup for bass guitars specifically, designed using principles of noise rejection that shared conceptual ground with the humbucking approach. The patent described a configuration that canceled out signals generated by sources other than the strings, producing a cleaner bass signal in recording and live environments.
The patent was one of nearly 50 that Fender would file over his career, reflecting his sustained engagement with the engineering problems of electric instruments even after his most famous designs were already in wide production. It captures Fender not as the inventor of a landmark guitar but as a working engineer returning repeatedly to the physics of how an instrument converts mechanical motion into a reliable electrical signal.
The Electric Guitar in Popular Music
The guitar pickup made rock and roll physically possible. The amplified electric guitar produced sounds at volumes that acoustic instruments could not match, and its tonal range, from the clean clarity of a Telecaster to the distorted sustain of a Les Paul through an overdriven amplifier, gave musicians a palette they explored relentlessly through the second half of the 20th century.
Jimi Hendrix used the Stratocaster's single-coil pickups to create sounds that went far beyond what Fender had designed them to produce, exploiting feedback, controlled distortion, and the interaction between pickup position and amplifier gain. Eddie Van Halen's work in the late 1970s pushed the instrument further, using modified pickups and amplifier settings to produce the tapped, harmonically complex playing that defined a generation of rock guitarists.
The heavy metal genre of the 1980s pushed output levels higher, with high-gain pickups designed to drive amplifiers into heavy distortion and sustain notes far longer than the physics of string vibration alone would allow. Companies like Jackson and Charvel built guitars specifically for this approach, with body shapes and pickup configurations optimized for aggressive playing styles.
The pickup has evolved steadily since Beauchamp's horseshoe magnet design in 1931: ceramic magnets, active electronics, piezoelectric elements, and digital modeling all now exist in the pickup space. But the fundamental operating principle of the design has not changed. A magnet, a coil, a vibrating string, an electrical signal. The physics Beauchamp worked out in a Los Angeles garage is still the mechanism at the center of every electric guitar made today.
The 1961 Fender patent drawing shows Leo Fender at work on one piece of that physics, decades into his career, still iterating on a problem that had not been fully solved. The drawing is the record of an engineer who understood that solving the string-to-signal conversion problem was not a single achievement but a continuous project.
